General Description

The AVS7101 is an advanced image processor designed to provide programmable fisheye lens distortion compensation for surveillance, car rearview, laparoscope, video conference, handheld devices, and other similar systems. This device accepts digital video as input and provides video output in multiple formats, including YCbCr422, BT.656/601, NTSC, and PAL. Frame rate conversion and analog composite SYNC signal are also provided.

Features

- Programmable perspective distortion compensation with perceptual filtering
- Programmable lens distortion compensation
- High quality pixel interpolation
- Support video format and rate conversion
- 16Mbits frame buffer for video conversion
- Still and dynamic overlay graphics
- Built-in sharpness and up-scaling engine

Application

- Rear and side view automotive camera          - Baby monitor
- Video door phone                                            - PC camera
- Surveillance camera                                         - Projector
- Video conference                                             - Mobile phone
- Medical laparoscope and bore scope

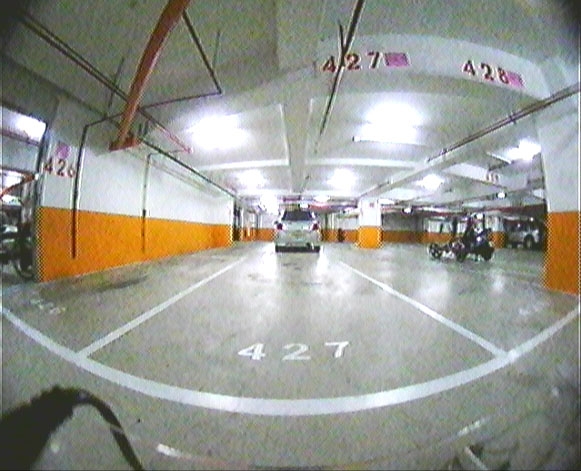

	Before Compensation

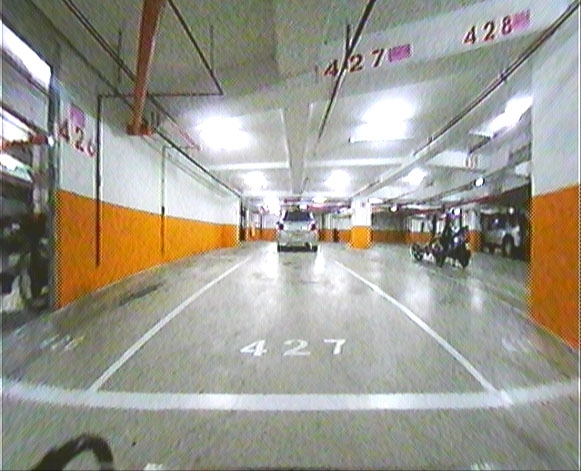

	After Compensation

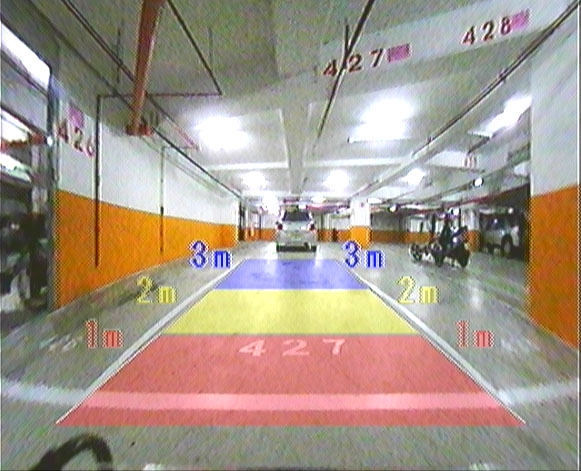

	Parking Assist Graphics
