產品資訊 >> AVS7102AQI

General Description

The AVS7102 is an advanced image processor designed to provide programmable fisheye lens distortion compensation for surveillance, car rear view, laparoscope, video conference, handheld, and other similar systems. This device accepts digital video as input and provides video output in multiple formats, including YCbCr422, BT.656/601 and NTSC/PAL CVBS. Frame rate conversion and analog composite SYNC signal are also provided.

Features

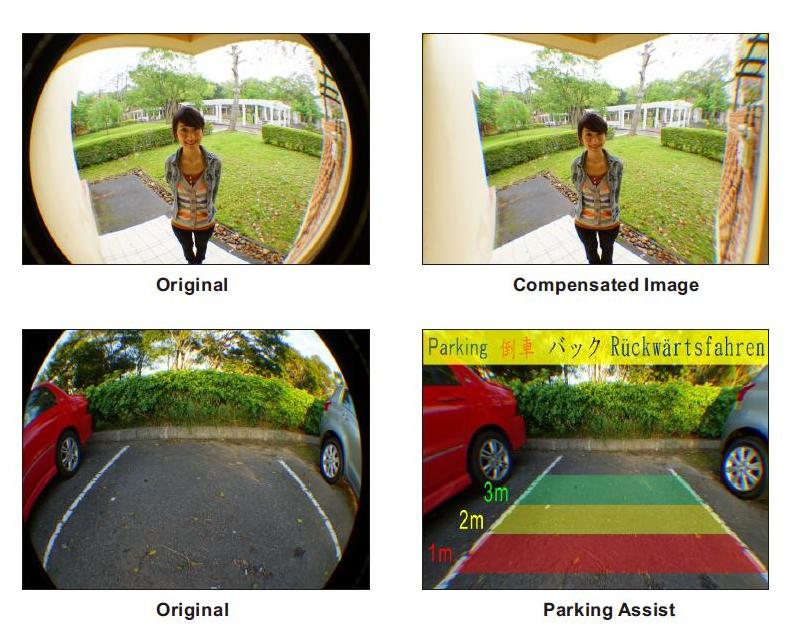

- Programmable perspective distortion compensation with perceptual filtering
- Programmable lens distortion compensation
- High quality pixel interpolation
- Support video format and rate conversion
- 16Mbits frame buffer for video conversion
- Still and dynamic overlay graphics
- Built-in sharpness and up-scaling engine
- Horizontal and vertical image flipping
- Font-based OSD
- Alpha blending
- On-chip line generator
- Support color filling between two lines
- Multiple digital input video formats
- Multiple digital and analog output video formats
- On-chip DAC for analog video output
- Programmable composite sync generation
- Two-wire interface operated in slave mode
- Input clock from oscillator
- Patent pending (US 20100119172)

Application

- Rear and side view automotive camera
- Video door phone
- Surveillance camera
- Video conference
- Medical laparoscope and bore scope
- Baby monitor
- PC camera
- ATM
- Mobile phone
- Projector
