產品資訊 >> AVS7201ABI (207pin)

General Description

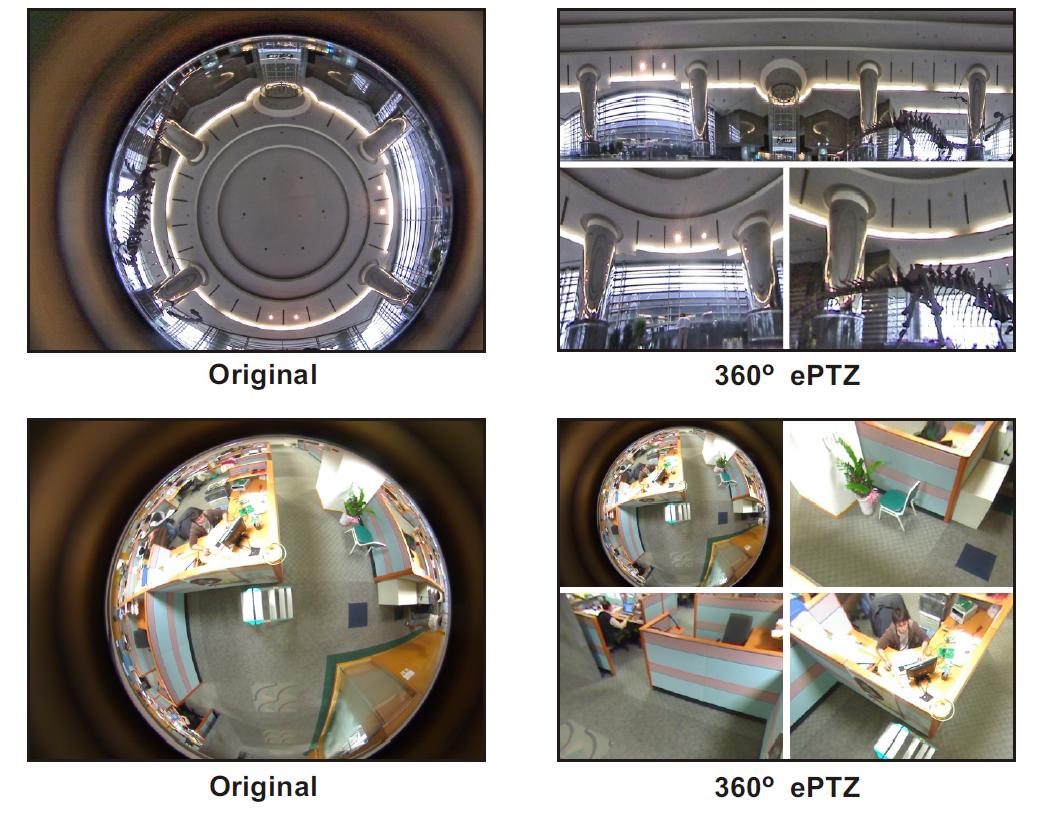

AVS7201 is a mega-pixel image processor that enables electronic pan, tilt, and zoom for surveillance, teleconference, security, and other similar camera systems equipped with fisheye lenses. It converts hemispherical image to rectilinear image and supports multi-view display of selected image areas with independent ePTZ. In addition, this product supports CMOS and CCD sensor inputs and is capable of generating up to four CVBS and digital outputs.

Features

- Supports fisheye lens up to 190° field of view
- Input image up to 2M pixels
- Lens distortion compensation programmable through two-wire serial interface
- Split-window display of multiple image areas with independent ePTZ
- Keystone correction
- Video format conversion
- Video rate conversion
- Multi-language OSD with alpha blending
- Privacy mask
- Image rotation, horizontal and vertical image flipping
- Multiple digital input video formats
- Up to four CVBS and digital outputs
- Input clock from oscillator or crystal
- Two-wire interface operated in slave mode
- Patent pending (US 20120114262)

Application

- 360° camera
- Network security camera
- HDcctv camera
- Analog security camera
- Video door phone
- Video conference
- Video server
- Automotive camera
- PC camera
- Smart phone
- Pico-projector
- Short-focus projector
- ATM
