General Description

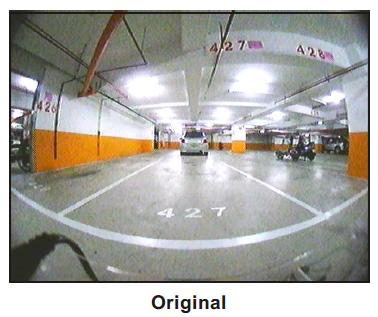

The FA86 is an advanced image processor providing many sophisticated image processing functions, including fisheye lens distortion compensation, video format conversion, overlay graphics, SDTV encoding, and privacy masking, that are useful for rear view, front view, and other similar automotive applications.

The integration of lens distortion compensation and steering guidance in one chip eliminates expensive overlay processing that is usually required by DSP solutions. FA86 outputs CVBS video of NTSC or PAL format. This device is programmable through simple two-wire serial interface at startup.

Features

- Programmable lens distortion compensation
- Programmable perspective distortion
- compensation with perceptual filtering
- High quality pixel interpolation

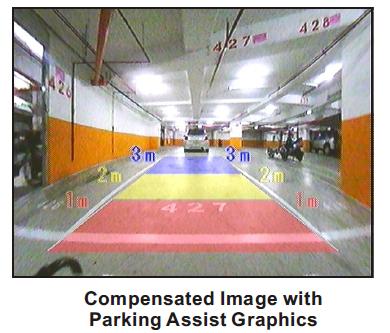

- Support parking assist graphics and privacy mask
- OSD and Alpha blending
- Support video format and rate conversion
- On-chip DAC for analog CVBS output
- Static and dynamic overlay graphics
- Built-in sharpness and up-scaling engine
- Horizontal and vertical image flipping
- Multiple digital input video formats
- Input clock from oscillator
- Two-wire interface operated in slave

Application

- Rear, front, or side view automotive camera
- Parking assist system
- On-board camera
- ATM
